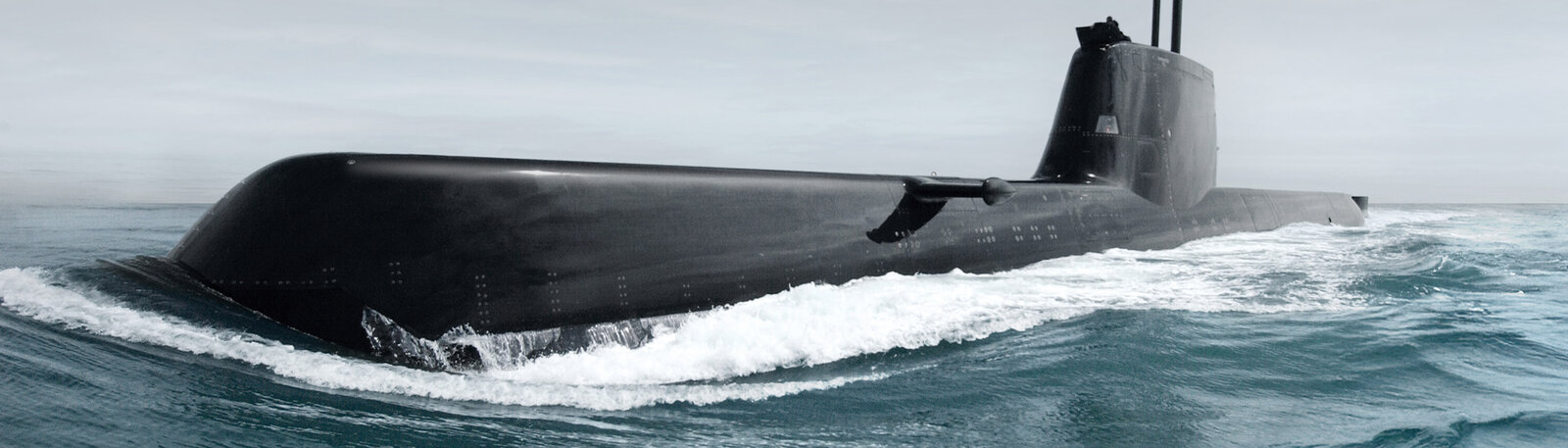

Next Generation HDW Class 214

The HDW Class 214NG, equipped with fourth generation AIP systems, can operate with an exceptionally low acoustic signature. This makes them particularly suited for surveillance and reconnaissance in littoral (coastal) environments, covert insertion missions and denial of access in strategic chokepoints. When combined with state-of-the-art battery technology, the performance of this class reaches new heights, continuously redefining excellence in submarine operations.

Combat System matches navy‘s needs with flexible weapon and sensor configuration.

Air Independent Propulsion (AIP) for undetected operation for several weeks

Maximized operational envelope in the 3D underwater world.

Fully Integrated AIP, Modular Systems, and Advanced Automation for Mission-Ready Versatility

The HDW Class 214NG submarine is a robust and reliable boat in the best tradition of the HDW Class submarines. It continues the virtues of this classes in terms of versatility, combat power, cruising range, maintainability, robustness, and durability increased by operationally exceptional AIP capabilities. The future orientated design through the introduction of modern, coordinated technologies ensures decades of operational service. The HDW Class 214NG is a submarine with an exceptional price/performance ratio and favorable life cycle costs.

Capabilities

The 4th generation of proven HDW Fuel Cell air-independent propulsion systems significantly increases underwater endurance and reduces risks of detection. The HDW Class 214 is optimized for low acoustic signatures to minimize detection probabilities. Furthermore, the large payload permits a wide, flexible scope of missions, ranging from littoral water operations to oceangoing patrols.

USPs

The HDW Class 214NG submarine with its increased diving depths, modular weapon and sensor mix in combination with the fully integrated AIP features makes the current version of HDW Class 214 predestined for all modern submarine operations and missions. The high degree of ship and combat automation makes the boat with its comprehensive systems and equipment easy to control in all situations.
HDW Class 214 Features:

New X-rudder configuration
New propulsion motor with continuously variable control, permanently excited,
The propulsion system is optimally coordinated with state-of-the-art diesel/gensets and can be used flexibly with LAB or LIB
Signature optimized with high shock standards
Most advanced ORCCA^® Combat System
Large payload concept for a flexible mix of weapon payloads and future orientated mission modules
Integration of Torpedo Countermeasures (TCM) system
Optical sensors are available in a customer-selectable combination
Universal deployment capabilities
Wide range of SOF solutions

Technical data HDW Class 214

Length over all (approx.)	71 m
Surface displacement (approx.)	2,000 t
Height incl. sail (approx.)	13 m
