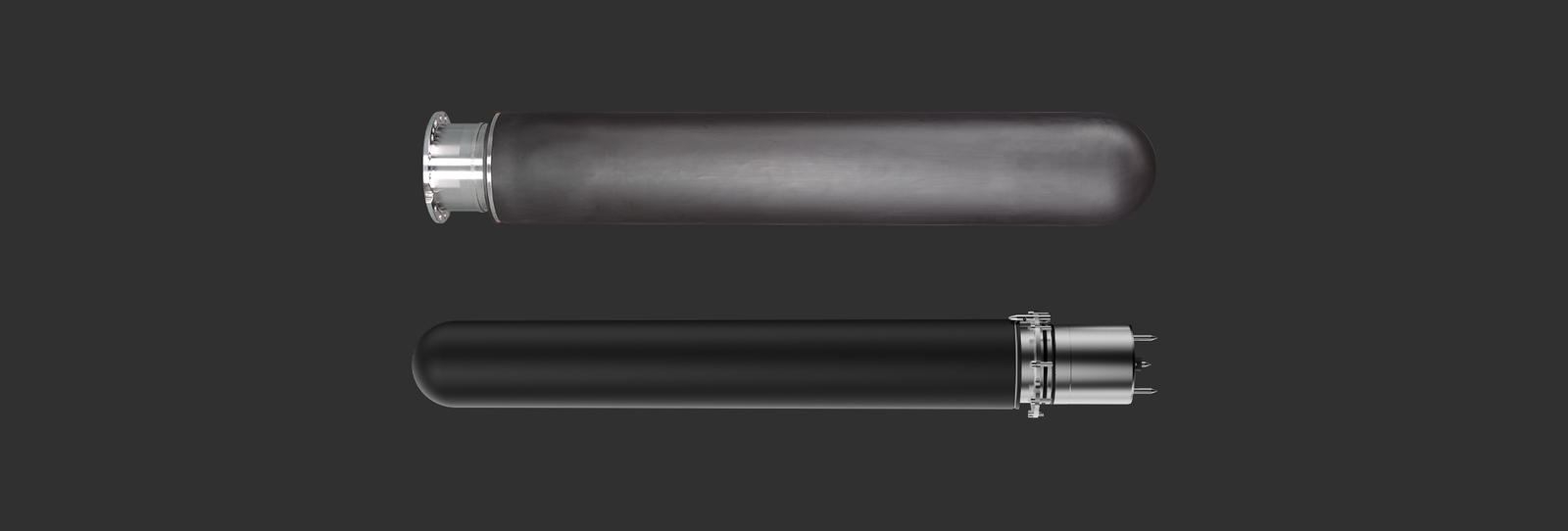

TMS 1110/1111 TRITON^®

TRITON TMS 1110/1111 antenna system with outstanding performance for submarines. Designed for maximum efficiency and minimal footprint, it delivers superior signal clarity and multi-band connectivity while withstanding harsh maritime conditions.

Designed for complex antenna collocation requirements on submarines.

Best possible coverage in every frequency range by optimized antenna geometrics in each band between 1.5 MHz to 1.6 GHz, incl UHF SATCOM.

Compact lightweight design which fits into a variety of mast footprints.

Elevating the performance of standard submarine multifunctional antenna systems.

The TRITON Antenna System sets a new standard in maritime communication.
Experience precise performance and robustness designed to operate under the most challenging conditions at sea.

Capabilities

The TRITON Antenna System delivers comprehensive coverage across a broad frequency spectrum, ranging from 1.5 MHz up to 1.6 GHz, ensuring seamless HF reception alongside both high and low VHF bands. It integrates UHF Line of Sight and UHF Satcom capabilities, providing robust communication channels that include Link 16 for tactical data exchange.

Additionally, the system supports Identification Friend or Foe (IFF) functionality, GPS navigation signals, and Inmarsat-C connectivity, offering a fully integrated solution designed to meet the demanding requirements of modern maritime operations with uncompromising precision.

USPs

Experience outstanding connectivity and precise performance with the Triton TMS 1110/1111 multifunctional antenna system. Designed for operation in the most demanding environments – on board submarines.

Engineered with advanced technology, this ruggedised antenna system delivers a fully integrated solution for a broad spectrum of communication services.

Technical data TRITON^®

Width	176 mm
Hoisted length	1125 mm
Overall length	Depending on mast type
Weight	TMA 1110 42 kg +/- 5 % TMA 1111 35 kg +/- 5 %
Temperature	-25 °C to +60 °C (operating) -40 °C to +70 °C (non-operating)
Pressure proof	90 bar (non-operating)
Shock	Equivalent to BV 0430/85 Issue 1/89
